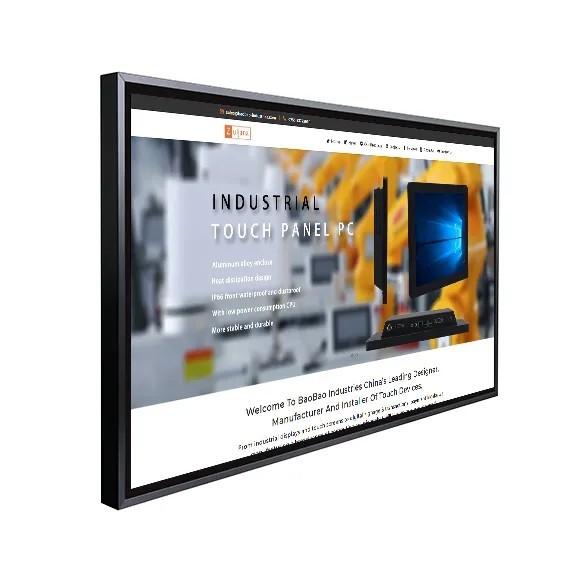

55inch Infrared Touch Screen Monitor Wall Mounted Touch Display Lcd
Capacitive Touch
LCD panel( IPS screen) |
Panel size | 55” (16:9) |
Native Resolution | 1920*1080 |
Brightness (cd/m²) | 450 cd/m2 |
Contrast ratio | 3000:1 |
View angle | 85°/85°/80°/80° (R/L/U/D) |
Touch panel |
Touchscreen Type | 10 points Projected capacitive touch |
Touch Interface | USB |
Signal Ports |
VGA | 1×VGA |
USB | 1xUSB for touch |
HDMI | 1xHDMI |
DVI | 1XDVI |
OSD |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language
select etc. |
Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry
Pi ect |
Power Supply |
External Power Supply | AC 100 - 240V |
Power consumption | ≤120W |
Operating Environment |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | operating: 10% to 90% , storage :5% to 90% |
Packing Details |
Packing detail | 1pcs/box 2pieces/carton |
Accessories | Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable,
Stander optional |
Applications:
1.Automatic system: intelligent self-service terminal, intelligent
retail terminal, O2O smart device, robot equipment;
2.Public Places: subway, airports, stations, gas stations, toll
stations, bookstores, parks, exhibition halls, stadiums, museums,
convention centers, ticket agencies, HR market, lottery centers;
3.Business Organizations: supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel agencies, pharmacy;
4.Financial Organizations: Banks, negotiable securities, funds,
insurance companies, pawnshops; > Non-profit Organizations:
Telecommunications, post offices, hospital, schools;
5.Real Estate Property: Apartments, villas, offices, commercial
buildings, model rooms, property brokers;
6. Entertainments: Movie theaters, fitness halls, country clubs,
clubs, massage rooms, bars, cafes, Internet bars, beauty shops,
golf course;
